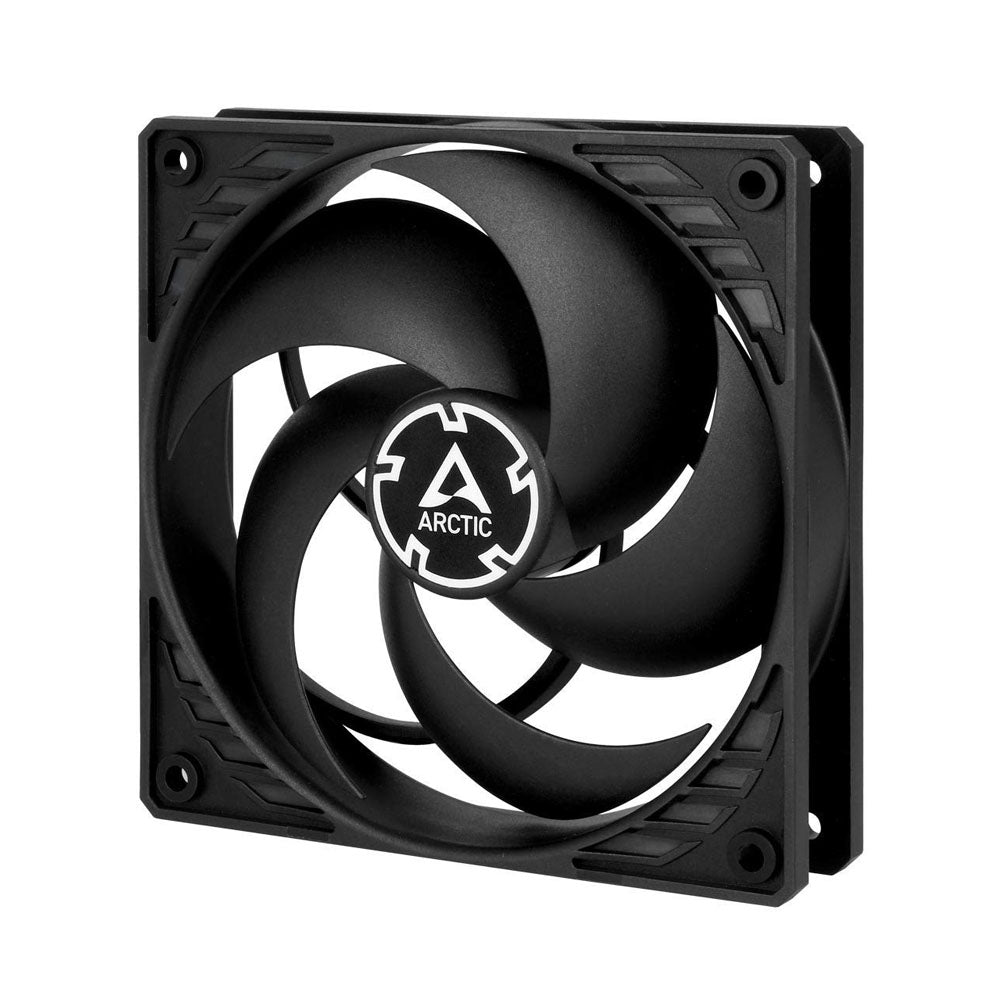

Arctic ACFAN00121A P12 PWM PST CO Pressure Optimized 120mm Fan w/ PWM and PST

(No reviews yet) Write a Review
$11.74
MPN
ACFAN00121A
UPC:
872767009301
Condition:
New
Availability:
Availability
Weight:
0.40 LBS
Shipping:
Calculated at Checkout

Features :

  • Optimized for static pressure
  • Ideal choice on heatsinks, radiators and (partly-) covered case vents
  • For continuous operation; Dual Ball bearing with 5x longer lifetime than regular bearings
  • 0 dB mode: silent passive mode when PWM signal is below 5 %
  • Pwm Sharing Technology (PST) regulates fan speed synchronously

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

P12 PWM
PST CO
F12 PWM
PST CO

Power Consumption

0.96 W @ 1800 RPM
2.88 W @ 1350 RPM

For Continuous Operation

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Fan with newly developed
ARCTIC motor
Fan with regular motor and
anti-vibration-rubber
Fan with regular motor
without vibration absorption

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
Consequently, we have extended the warranty to 10 years.

5 % vibration from
commutation

50 % vibration from
commutation

100 % vibration from
commutation

200 to 1800 RPM
regulated via PWM

With a wide range of regulation and the PWM Sharing Technology (PST), the P12 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed

0 dB Mode

The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.

Two Way Installation



Push warm air out of the case

Pull cool air into your case



Brand:
Arctic
Fan:
120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM
Air Flow:
56.3 CFM / 95.65 m³/h
Noise Level:
0.3 Sone (@ 1 800 RPM)
Static Pressure::
2.2 mm H2O (@ 1 800 U/min)
Typical Voltage::
+ 12 V DC
Start-up Voltage::
3.9 V DC
Cable Length::
400 mm
Sub PST Cable Length::
50 mm
Connection:
4-pin connector + 4-pin socket
