Description
Product Overviews

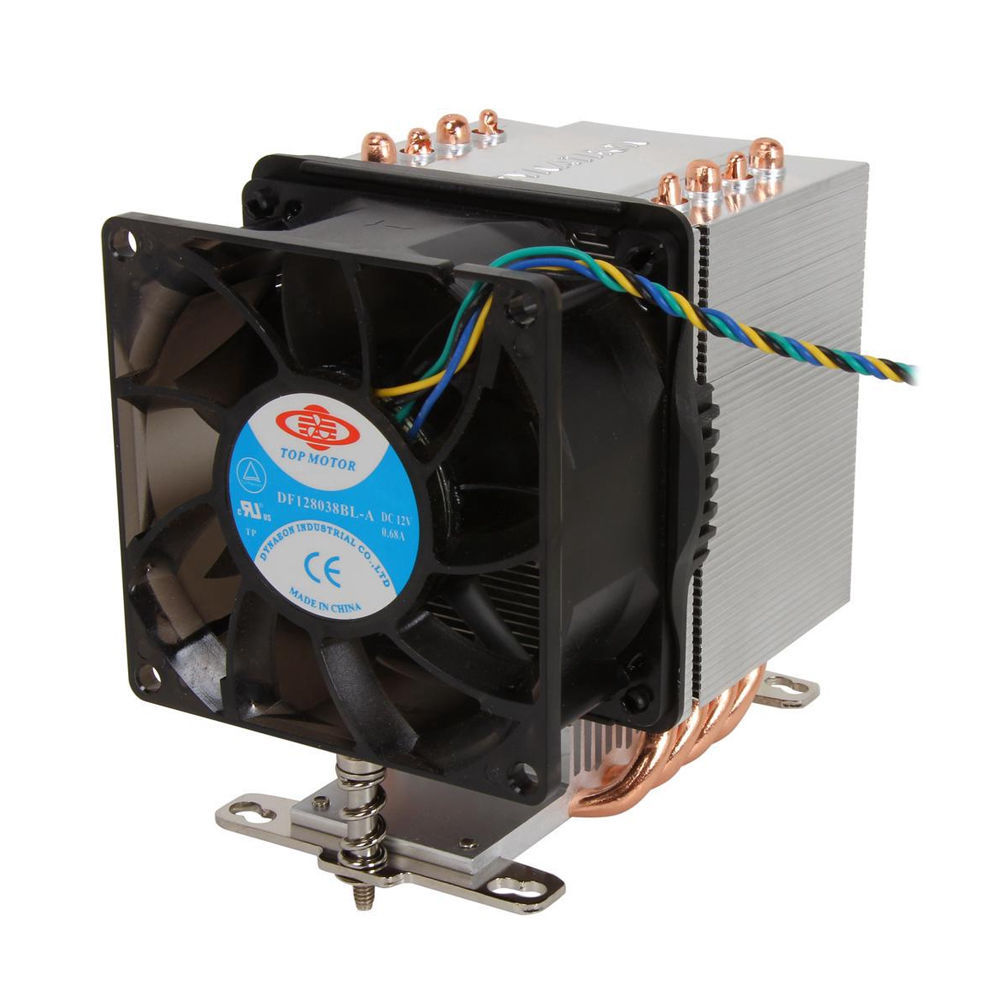

Dynatron CPU Cooler for AMD G34 Opteron Series 6100 / 6200 / 6300 Processors, RoHS Compliance, Model: A14.
- Intelligent H.C.C.
- High-density wave-fin
- U-Shape Heatpipe x4
- Rohs Compliance
Product Specification
| CPU Socket | G34 |
| CPU Support | AMD Opteron Series 6100,6200,6300 processors up to TDP 140 Watts |
| Solution | 3U&Up, Workstation & Tower Desktop Solution |
| Speed | - At Duty Cycle 20%: 1000 RPM - At Duty Cycle 50%: 2000 RPM - At Duty Cycle 100%: 3800 RPM |
| Bearing | 2 Ball Bearing |
| Rated Voltage | 12 V |
| Power | - At Duty Cycle 20%: 2.2 W - At Duty Cycle 50%: 3.6 W - At Duty Cycle 100%: 7.9 W |
| Air Flow | - At Duty Cycle 20%: 13.8 CFM - At Duty Cycle 50%: 30.78 CFM - At Duty Cycle 100%: 65.4 CFM |
| Air Pressure | - At Duty Cycle 20%: 0.42 mm-H2O - At Duty Cycle 50%: 2.45 mm-H2O - At Duty Cycle 100%: 9.75 mm-H2O |
| Lead Wire Pin Out | - Pin1- (-) - Pin2- (+) - Pin3- (Techometer/Signal output) - Pin4- (PWM) |
