DYNATRON N11

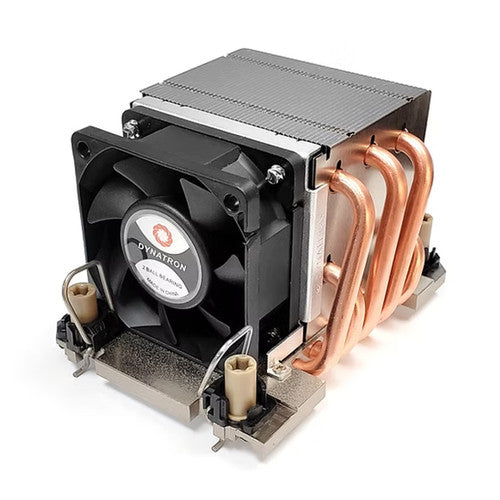

The Dynatron N11 2U Server Active Cooler features aluminum fins and a 60mm fan, designed for Intel LGA4189-4 and LGA4189-5 processors. This efficient active cooler ensures optimal thermal performance in 2U server environments, keeping your system cool even under heavy workloads.

• Intel Ice Lake and Cooper Lake Server Processors, Socket FCLGA4189-4 / -5 (Socket P4 / P5 or P+)
• Active Cooler for 2U Server and up

Overall Specification

• Fan: 6025 PWM Fan for Heat Exhausting
• Material: 5 Heatpipes with Aluminum Fin Base
• Mounting: Intel LGA4189 standard Mounting Kits
• Package Carrier: PHM Package Carrier is included
• Thermal Grease: Shin-Etsu 7762 or Equivalent
• TDP: Support CPU Power up to 270 Watts Heat Dissipation

Fan Specification

• Bearing: Double Ball
• Rated Voltage: 12V

Rated Speed

• At Duty Cycle 0~20%: 1700 ± 200 RPM
• At Duty Cycle 50%: 4000 RPM ± 10%
• At Duty Cycle 100%: 8500 RPM Min.

Input Power

• At Duty Cycle 0~20%: 1.2 W
• At Duty Cycle 50%: 2.52 W
• At Duty Cycle 100%: 9.6 W

Maximum Airflow

• At Duty Cycle 0~20%: 9.86 CFM
• At Duty Cycle 50%: 23.21 CFM
• At Duty Cycle 100%: 49.32 CFM

Rated Static Pressure

• At Duty Cycle 0~20%: 0.86 mm-H2O
• At Duty Cycle 50%: 4.76 mm-H2O
• At Duty Cycle 100%: 21.5 mm-H2O

Acoustical Noise

• At Duty Cycle 0~20%: 19.3 dBA
• At Duty Cycle 50%: 37.9 dBA
• At Duty Cycle 100%: 54.3 dBA

Lead Wire Pin Out

• Pin#1- Black(-)
• Pin#2- Yellow(+)
• Pin#3- Green(Tachometer/ Signal Output)
• Pin#4- Blue (PWM)
